Mold Flow Analysis & Design for Manufacturability (DFM)

Custom Molding Company · Wiki / Knowledge Base · Last updated June 2026

Every injection molding defect that reaches the production floor was preventable at the design stage. Mold flow analysis and Design for Manufacturability (DFM) are the two engineering processes that eliminate defects before steel is cut — saving weeks of mold modification time and tens of thousands of dollars in rework costs. This guide explains how our custom plastic injection molding team applies both processes to every program before committing to tooling.

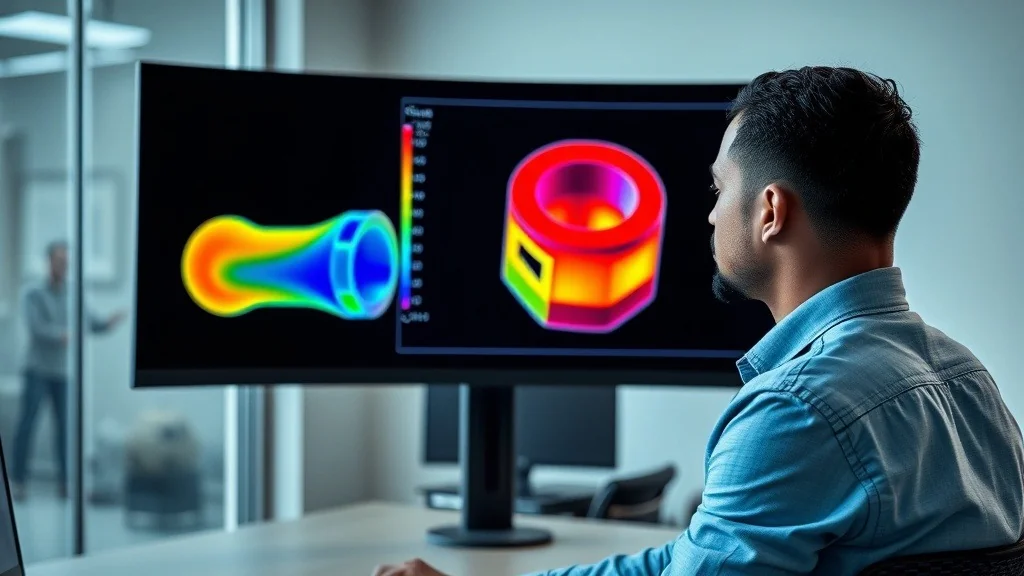

Mold flow simulation showing fill pattern and weld line prediction — Custom Molding Company

What is Mold Flow Analysis?

Mold flow analysis (also called injection molding simulation) is a computational fluid dynamics (CFD) process that simulates the behavior of molten polymer as it fills a mold cavity. The simulation predicts fill patterns, pressure distribution, temperature gradients, weld line locations, air trap positions, and post-mold warpage — all before the mold is machined. The industry-standard software platforms are Autodesk Moldflow and Moldex3D, both of which use finite element analysis (FEA) to discretize the part geometry into a mesh of tetrahedral elements and solve the governing equations of polymer flow at each time step.

The economic case for mold flow analysis is straightforward. A mold flow study costs $800-2,500 depending on part complexity. A single mold modification to correct a defect identified during first-shot trials costs $2,000-8,000 and adds 2-4 weeks to the program timeline. The expected value of mold flow analysis — probability of defect × cost of correction — is positive for virtually every program with a tooling cost above $5,000.

Common Injection Molding Defects Prevented by DFM

Sink Marks

• Caused by excessive wall thickness variation — thick sections cool slower, creating internal voids that pull the surface inward
• Prevention: Maintain uniform wall thickness (±25% of nominal). Target 2.0-3.5mm for most thermoplastics
• Prevention: Rib-to-wall ratio must not exceed 0.6:1 (rib thickness ≤ 60% of adjacent wall)
• Prevention: Boss-to-wall ratio must not exceed 0.6:1 (boss outer diameter ≤ 60% of adjacent wall × 2)
• Prevention: Increase pack pressure and pack time to compensate for shrinkage in thick sections

Warpage

• Caused by differential shrinkage — sections that cool at different rates shrink by different amounts, creating internal stresses that distort the part after ejection
• Prevention: Uniform wall thickness eliminates the primary driver of differential shrinkage
• Prevention: Balanced cooling channel layout — temperature differential between hottest and coolest cavity point must not exceed 8°C
• Prevention: Gate location optimization — gate at the thickest section to ensure the pack pressure reaches all areas of the cavity before the gate freezes
• Prevention: For semi-crystalline resins (HDPE, PP, Nylon) — increase mold temperature to promote uniform crystallization and reduce anisotropic shrinkage
• Prevention: Structural ribs oriented perpendicular to the primary warpage direction to resist post-mold distortion

Weld Lines

• Caused by two flow fronts meeting after flowing around a core pin, through a hole, or from multiple gates — the polymer at the flow front has cooled and cannot fully re-fuse
• Prevention: Relocate gate to eliminate flow-front convergence at structurally critical locations
• Prevention: Increase melt temperature and injection speed to ensure flow fronts are still molten when they meet
• Prevention: Add overflow wells at predicted weld line locations to flush the cold flow front material out of the cavity
• Prevention: For glass-filled resins — weld lines are 30-50% weaker than the base material; structural analysis must account for weld line location

Short Shots

• Caused by insufficient injection pressure, melt temperature, or venting — the polymer freezes before filling the cavity completely
• Prevention: Mold flow analysis identifies areas of high flow resistance (thin sections, long flow paths) before tooling is cut
• Prevention: Add vents at predicted air trap locations (typically the last point to fill) — standard vent depth 0.025mm for ABS, 0.015mm for PP
• Prevention: Increase gate size to reduce pressure drop at the gate
• Prevention: Add a cold slug well at the sprue base to capture the cold slug from the previous shot

Flash

• Caused by polymer flowing into the parting line gap or ejector pin clearance under injection pressure
• Prevention: Reduce injection pressure and speed — flash is often a process parameter issue, not a tooling issue
• Prevention: Increase clamp force to ensure the mold stays closed under injection pressure
• Prevention: Verify parting line flatness — parting line gap must be less than 0.03mm for standard resins
• Prevention: Reduce ejector pin clearance to 0.025mm maximum for low-viscosity resins

Burn Marks (Diesel Effect)

• Caused by compressed air igniting at the last point to fill — the "diesel effect" where trapped air reaches ignition temperature under adiabatic compression
• Prevention: Add vents at predicted air trap locations identified by mold flow simulation
• Prevention: Reduce injection speed in the final 10-15% of fill to allow air to escape before compression
• Prevention: Add vacuum venting for deep-ribbed or thin-walled parts where conventional venting is insufficient

DFM Checklist: 12 Rules Before Cutting Steel

1. Wall Thickness: Nominal 2.0-3.5mm. Maximum variation ±25% of nominal. No abrupt thickness transitions.
2. Draft Angles: Minimum 1° per side on all vertical walls. 2-3° for textured surfaces. 5° for deep ribs.
3. Rib Design: Height ≤ 3× wall thickness. Thickness ≤ 60% of adjacent wall. Fillet radius at base ≥ 0.5mm.
4. Boss Design: Outer diameter ≤ 2× inner diameter. Wall thickness ≤ 60% of adjacent wall. Gussets if height > 2× outer diameter.
5. Gate Location: Gate at thickest section. Avoid gating at structural features, cosmetic surfaces, or weld-line-sensitive areas.
6. Undercuts: Identify all undercuts requiring side actions or lifters. Confirm mechanism fits within mold base envelope.
7. Parting Line: Define parting line on a neutral plane. Avoid parting lines through cosmetic surfaces.
8. Ejection: Minimum 2% draft on all ejector pin contact surfaces. Ejector pin diameter ≥ 3mm. Pin layout balanced to prevent part distortion on ejection.
9. Radii: All internal corners minimum R0.5mm. Sharp internal corners are stress concentrators and create weld lines.
10. Tolerances: Specify only critical dimensions as tight tolerances. Injection molding process capability is ±0.1mm for general dimensions; ±0.05mm requires tooling optimization.
11. Material: Confirm resin selection before DFM — shrinkage rate, melt temperature, and viscosity all affect gate size, runner design, and cooling requirements.
12. Surface Finish: Specify SPI finish grade on all surfaces. A1/A2 mirror finish requires H13 steel and adds 15-25% to tooling cost.

Our DFM Process: Zero-Cost Engineering Review

Every program at our global custom molding company begins with a comprehensive DFM review at no charge. Submit your 3D CAD model (STEP, IGES, or Parasolid format) and our engineering team will return a written DFM report within 5 business days, identifying all potential defects, recommending design modifications, and confirming the optimal gate location and tooling steel selection for your specific resin and volume combination.

The DFM report is the foundation of our tooling quotation. By resolving all design issues before quoting, we eliminate the "scope creep" that inflates tooling costs at less rigorous suppliers — where design changes discovered during tooling manufacture are billed as change orders at premium rates.
