Why is HIPS the preferred material for vacuum forming?

High Impact Polystyrene (HIPS) offers an exceptional balance of impact resistance, dimensional stability, and thermoforming ease. It softens at relatively low temperatures, allowing for rapid cycle times and deep draws without tearing or webbing.

What are the common applications for HIPS thermoforming?

HIPS is heavily utilized in medical device packaging trays, automotive interior paneling, point-of-purchase displays, and protective transit dunnage. Food-contact and medical-contact grades are available from certified resin suppliers.

Can HIPS be recycled?

Yes. HIPS is 100% recyclable. Through our industrial plastic recycling program, we regrind vacuum forming skeletal waste (the material trimmed away from the formed part) and reintroduce it into the supply chain, creating a closed-loop circular economy.

How does HIPS compare to ABS in vacuum forming?

While ABS offers slightly higher impact strength and better chemical resistance, HIPS is more cost-effective, forms faster, and provides excellent aesthetics. HIPS is typically chosen for disposable or semi-durable applications, whereas ABS is selected for permanent structural housings.

High Impact Polystyrene (HIPS) Vacuum Forming

The undisputed king of thermoforming. Engineered for deep draws, rapid cycle times, and exceptional impact resistance in medical, automotive, and packaging applications.

Compare Tooling Costs ↓

Why HIPS Dominates Thermoforming

As a global custom molding company, we process millions of pounds of resin annually. When it comes to heavy-gauge vacuum forming, High Impact Polystyrene (HIPS) is consistently our most requested material.

HIPS is a rubber-modified polystyrene. The addition of polybutadiene rubber transforms brittle standard polystyrene into a highly resilient, impact-resistant sheet. It softens uniformly under heating elements, allowing it to stretch deeply into mold cavities without tearing, webbing, or thinning out excessively at the corners.

Excellent Thermoforming Characteristics: Broad processing window and high melt strength.
Dimensional Stability: Retains its shape well after cooling, ensuring tight tolerances.
Cost-Effective: Significantly lower raw material cost compared to ABS or Polycarbonate.
Surface Finish: Available in matte, gloss, and custom textured finishes.

Technical Properties of HIPS

Property	Value Range	Test Method (ASTM)
Density / Specific Gravity	1.03 - 1.05 g/cm³	D792
Tensile Strength (Yield)	20 - 35 MPa	D638
Notched Izod Impact	100 - 200 J/m	D256
Heat Deflection Temp (0.45 MPa)	75 - 90 °C	D648
Forming Temperature Range	150 - 180 °C	Processing Spec

Applications Across Industries

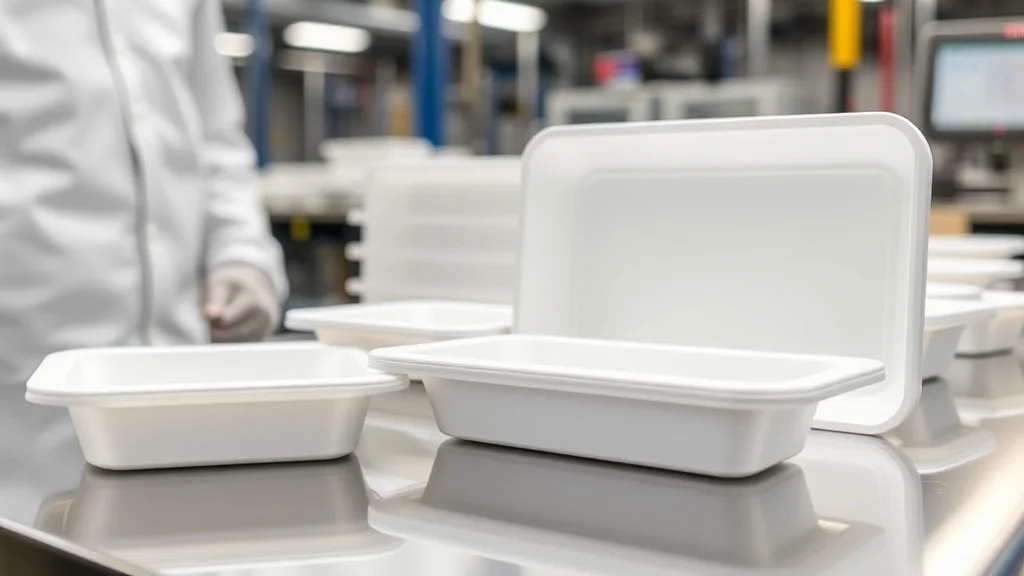

HIPS is exceptionally versatile. In the medical device sector, food-contact and medical-contact grade HIPS is used to vacuum-form sterile packaging trays and surgical instrument dunnage. The material does not outgas harmful compounds and can be sterilized using gamma radiation or EtO.

In automotive manufacturing, HIPS is frequently thermoformed into interior trim panels, instrument cluster housings, and protective transit trays used to move sensitive electronic components across the assembly line.

HIPS and the Circular Economy

One of the greatest advantages of HIPS in vacuum forming is its 100% recyclability. Thermoforming inherently produces "skeletal waste" — the plastic sheet remaining after the formed part is trimmed out.

Through our industrial plastic recycling program, we capture this skeletal waste, regrind it, and extrude it back into fresh sheet stock. This closed-loop system significantly reduces raw material costs for our clients while ensuring full compliance with EU and UK ESG (Environmental, Social, and Governance) mandates.
